Biconicals AH雙錐形天線

Selection by Model Type: Biconical Antennas
For many years most standards called for the use of a half-wave dipole antenna set for frequencies above 80 MHz. However, to reduce test time, broadband antennas such as the biconical antenna and log periodic antennas began to be accepted. Broadband antennas, compared to half wave dipoles, reduce test time because the technician did not have to stop the test to adjust the dipole antenna for each frequency. A.H. Systems' 5 models of Biconical Antennas operate efficiently over the frequency range of 20 MHz to 330 MHz. Suitable for FCC, MIL-STD, VDE, TEMPEST, and immunity testing, each Biconical antenna will provide reliable, repeatable measurements.

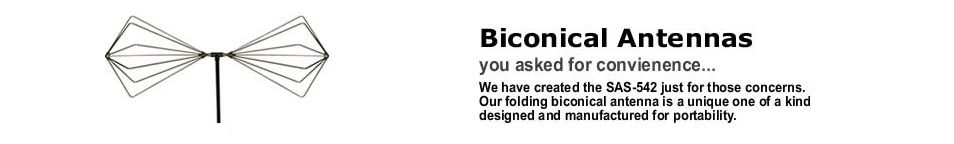

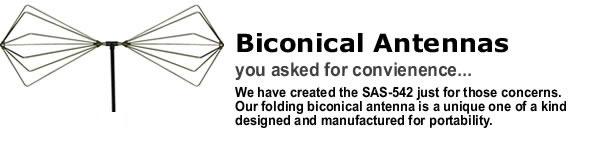

For rapid deployment along with the mobility of a small package, the folding Biconical elements can be closed similar to an umbrella allowing the antenna to be contained in an optional transit storage case.

Model

Frequency Range

Description

SAS-540

20 MHz - 330 MHz

Biconical

SAS-542

20 MHz - 330 MHz

Biconical, Folding

SAS-543

20 MHz - 300 MHz

Biconical, High Power, 1000W

SAS-544

20 MHz - 300 MHz

Biconical, High Field, 300W

SAS-544F

20 MHz - 300 MHz

Biconical, Folding, High Field

SAS-545

30 MHz - 1 GHz

Biconical Antenna

SAS-547

1 GHz - 18 GHz

High Frequency Biconical
