Water sealing EMI gaskets for screwed applications like panels, displays and windows
水封EMI墊圈用于螺絲擰緊的應用，如面板，顯示器和窗戶

The 7300 series EMC / IP gaskets are cost-effective combinations of an EMI shielding gasket and a water seal. This type comes with a self-adhesive strip.
7300系列EMC/IP墊圈是一款經濟的有一個EMI屏蔽墊圈和一個水封的制品。這個類型一起供應一個自粘帶。
The gasket consists of two neoprene foam cores, one of which is covered with reinforced foil, based on the high performance Amucor alloy. Amucor is good compatible with aluminium and zinc plated steel. For aluminium with alochrome or stainless steel it is better to use highly conductive textile. The two parts can deflect independently to guarantee optimal shielding and sealing performance. Sharp inside corners can be made easily, without interrupting the water seal. For special applications, different foam cores and conductive foils and fabrics are available.
該墊圈的組成由兩個氯丁（二烯）橡膠泡沫核，一個被覆著加固箔片，基于高性能Amucor合金。Amucor與鋁和鋅鋼板是好的兼容。對于鋁與鉻或不銹鋼，它是更好的使用高導電織物。這兩個部分能獨自地偏轉以確保最佳的屏蔽和密封性能。內棱角銳角能容易地制作，沒有中斷水封。對于特殊的應用，不同的泡沫核和導電箔和織物可獲得。

Benefits好處

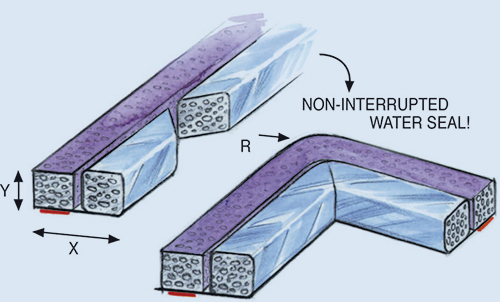

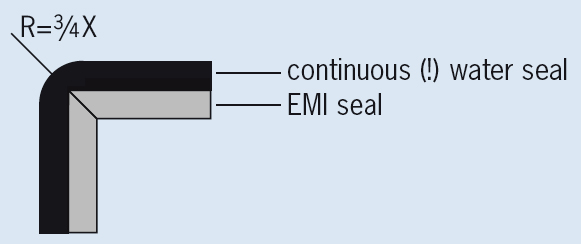

1. Bends easily around sharp corners without interrupting the water seal. 彎曲容易地圍繞銳角轉角沒有中斷水封。
2. Excellent water sealing up to IP65 (depending on construction).卓越的水封性，可達IP65（依據結構）。

Shielding Performance屏蔽性能
Shielding effectiveness depends on surface, shape of gaskets and materials used.屏蔽效能依據表面、墊圈的形狀和使用的材料。

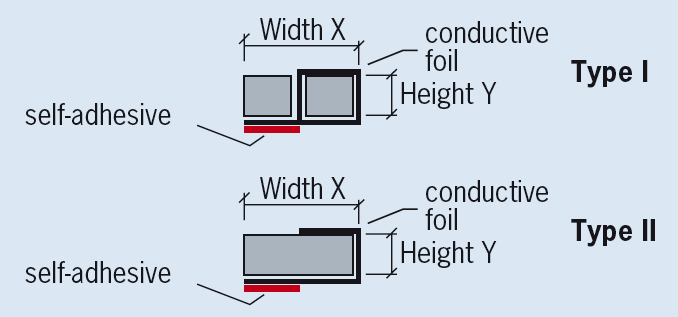

Construction結構

Partnumbers零件號

Example舉例
Please specify your choise of T (Textile) or A (Amucorfoil). Please indicate whether two separate parts are desired (Type I) or one piece (Type II).
請確定你的選擇：T (Textile) or A (Amucorfoil).請指出是否是兩個分離的部分(類型I)或一部分（類型II）。
For example: Height Y 5mm, Width 10 mm with Amucor foil in two separate parts: 73-5-10-5-A-II.
例如：高度Y 5mm，寬度 10mm，用Amucor箔，用兩個分離部分：73-5-10-5-A-II.
