The 8200 series connector gaskets are die-cut gaskets for EMI shielding and grounding of a wide range of connectors. These new connector gaskets are more effective in closing gaps caused by fabrication tolerances and misaligned or irregular surfaces than would be possible with a solid flange design.
8200系列連接器墊圈是沖切墊圈用于EMI屏蔽和接地的一個寬系列的連接器。這些新的連接器墊圈是更加有效的在閉合由制造公差和方向偏離或非正則曲面引起的間隙比可能的帶一個實心的凸緣設計。
The 8200 series is made of die-cut Amucor-shield 6800 or conductive textile, 1 or 2 mm thick, provided with self-adhesive.
8200系列由沖切的Amucor-shield 6800或導電織物制造，1或2mm厚，供應帶自粘。
|
Standard dimensions標準尺寸

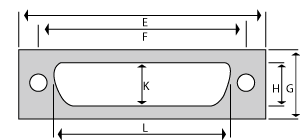

Sub-D connector gaskets連接器墊圈
|
Dimensions in mm尺寸用毫米
|
Front Mounting正面安裝 |
Rear Mounting背面安裝 |
|
Shell size |
E |
F |
G |
H |
L |
K |
L |
K |
|
9 |
33.35 |
25.00 |
19.05 |
3.56 |
19.86 |
11.43 |
16.89 |
9.40 |
|
15 |
41.68 |
33.33 |
19.05 |
3.56 |
28.20 |
11.43 |
25.22 |
9.40 |
|
25 |
55.58 |
47.04 |
19.05 |
3.56 |
41.91 |
11.43 |
38.94 |
9.40 |
|
37 |
71.86 |
63.50 |
19.05 |
3.56 |
58.37 |
11.43 |
55.40 |
9.40 |
|
50 |
69.60 |
61.11 |
21.85 |
3.56 |
55.88 |
16.82 |
53.01 |
12.19 |  |
|
RF connector gasket連接器墊圈
|
Connector
Type連接器類型
|
Dimensions in mm尺寸 |
|
A |
B |
C |
D |
|
BN |
17.45 |
12.70 |
11.10 |
2.77 |
|
BNC |
17.45 |
12.70 |
11.10 |
2.77 |
|
C |
25.40 |
18.26 |
15.88 |
4.37 |
|
HN |
30.18 |
23.01 |
19.05 |
3.56 |
|
LC |
50.80 |
36.50 |
31.75 |
6.53 |
|
N |
25.40 |
18.26 |
15.88 |
4.37 |
|
UHF |
32.54 |
24.61 |
25.40 |
4.37 |  |
|
JT, PT, PC, MIL-C-26482, MS-3110, MS-3112, MS-3119, MS-3120 connector gaskets連接器墊圈
|
Part Number /Shell Size
零件號/外殼尺寸
|
Dimensions in mm尺寸 |
|
A |
B |
C |
D |
|
8206 |
17.48 |
11.91 |
9.53 |
3.30 |
|
8208 |
20.62 |
15.09 |
12.70 |
3.30 |
|
8210 |
23.83 |
18.26 |
15.88 |
3.30 |
|
8212 |
26.19 |
20.65 |
19.05 |
3.30 |
|
8214 |
28.56 |
23.01 |
22.23 |
3.30 |
|
8216 |
30.96 |
24.61 |
25.40 |
3.30 |
|
8218 |
33.32 |
27.00 |
28.56 |
3.30 |
|
8220 |
36.53 |
29.36 |
31.75 |
3.30 |
|
8222 |
39.70 |
31.75 |
34.93 |
3.30 |
|
8224 |
42.88 |
34.93 |
38.10 |
3.96 |  |
|
AN, HT, QWL, MIL-C-5015, MS3100, MS3102 ,connector gaskets A Series
|
Part Number /
Shell Size
|
Dimensions in mm |
|
A |
B |
C |
D |
|
8208A |
22.23 |
15.09 |
12.70 |
4.37 |
|
8210A |
25.40 |
18.28 |
15.88 |
4.37 |
|
8212A |
29.79 |
20.65 |
19.05 |
4.37 |
|
8214A |
30.16 |
23.01 |
22.23 |
4.37 |
|
8216A |
32.54 |
24.61 |
25.40 |
4.37 |
|
8218A |
34.93 |
27.00 |
28.56 |
5.15 |
|
8220A |
38.10 |
29.36 |
31.75 |
5.15 |
|
8222A |
41.28 |
31.75 |
34.93 |
5.15 |
|
8224A |
44.45 |
34.93 |
38.10 |
5.15 |
|
8228A |
50.80 |
39.70 |
44.45 |
5.15 |
|
8232A |
57.15 |
44.45 |
50.80 |
5.56 |
|
8236A |
63.50 |
49.23 |
55.58 |
5.56 |
|
8240A |
69.85 |
55.58 |
61.93 |
5.56 |
|
8244A |
76.20 |
60.33 |
70.64 |
5.56 |
|
8248A |
82.55 |
66.68 |
76.99 |
5.56 |  |
|
Bendix-SP connector gasket B series
|
Part Number /Shell Size
|
Dimensions in mm |
|
A |
B |
C |
D |
|
8206B |
24.21 |
16.28 |
9.53 |
4.06 |
|
8208B |
26.59 |
18.64 |
12.70 |
4.06 |
|
8210B |
28.56 |
20.62 |
15.88 |
4.06 |
|
8212B |
31.75 |
23.83 |
19.05 |
4.06 |
|
8214B |
34.93 |
26.19 |
22.23 |
4.06 |
|
8216B |
36.50 |
28.56 |
25.40 |
4.06 |
|
8218B |
38.51 |
30.56 |
28.56 |
4.06 |
|
8220B |
42.47 |
32.94 |
31.75 |
4.06 |
|
8222B |
44.45 |
34.93 |
34.93 |
4.06 |  |
Example舉例
Connector gasket 8208A with an Amucor foil (A) covering, 1mm thick
連接器墊圈8208A帶一個Amucor薄板（A）覆蓋，1mm厚。
Part number零件號 |
Covering覆蓋 |
Thickness (mm)厚度 |
|
8208A |
A |
1 |
|
Select the partnumber form the connector gasket partnumber tables
選擇零件號從連接器墊圈表。 |
T : Conductive textile導電織物
A : Amucor foil薄片
B : Embossed Amucor foil裝飾Amucor薄片 |
Standard 1 or 2 mm. Other thickness on request
標準1或2mm。其它厚度根據需求。 |
