Any size you want!任何你想要的尺寸！
High deflection - low closure force gaskets without tooling costs高撓度-低閉合力墊圈沒有工具加工成本

A new CNC extrusion system has been developed to manufacture EMI shielding gaskets in a wide range of shapes and dimensions. With this system there are no tooling costs, so it is also interesting for smaller quantities or special constructions. The metal-cladded flame retardant gasket can be manufactured in several rigidities and is very compatible with aluminium, zinc-plated steel, Aluzinc, stainless steel, copper, etc.
一個新的CNC計算機數控擠出系統已經被發展制造EMI屏蔽墊圈在一個寬的形狀和尺寸范圍。用這個系統沒有工具加工成本，因此它也是有興趣于更小的數量或特殊的結構。該金屬鎧裝的阻燃劑墊圈能被制造用幾個剛度及是非常適合于鋁，鋅板鋼，不銹鋼，銅，等等。
Enclosures can be constructed more cost-effectively and compactly and the (electrically conductive) self-adhesive strips will reduce production time. The material is non-toxic and is an excellent replacement for the environmentally polluting beryllium gaskets.
外殼能被構造的更經濟和簡潔及（電傳導）自粘條將減少生產時間。材料是無毒的及是一個卓越的替代對于有關環境方面的污染鈹墊圈。
Available in dimensions from 1.7 - 30 mm, with or without separate water seal. The gaskets can be supplied in lengths according to customer specifications.
可獲得的尺寸從1.7到30mm，有或沒有分離的水封。該墊圈能被供應的長度根據客戶的規格說明。

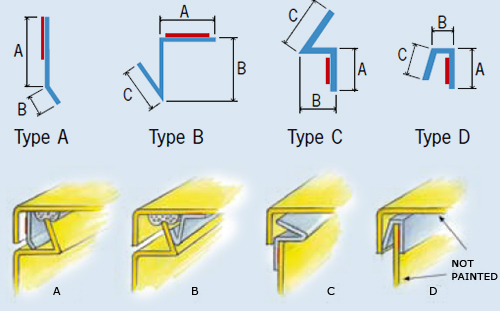

Standard shapes are available for 19" racks, watertight enclosures and PCB shielding.
標準形狀可獲得用于19英寸機柜，水密的外殼和PCB屏蔽。

Standard partnumbers標準零件號

Shielding performance

Benefits好處

1. No tooling costs 沒有工具加工成本
2. A wide range of shapes  一個寬范圍的形狀
3. Self-adhesive gasket  自粘墊圈
4. Easy to fit  容易安裝
5. Small dimensions  小尺寸
6. Very high deflection 非常高的撓度
7. Low closure force 低的閉合力

Options選件

1. Cut into accurate lengths 切割成精確的長度
2. Combination with water seal 兼具水封
3. UL94V-0 compliant flame retardant 依從阻燃劑
4. Chemical resistant versions 耐化學版
5. Resistent to high temperatures 耐高溫
6. Different conductive foils and fabrics 不同的導電箔和織物

Example舉例
Customized gasket 8800, type B, 15, 15, 12 mm made of conductive textile.
定制墊圈8800，類型B，15,15,12mm由導電織物制造
