Shielded doors for the use in faraday cages and shielded room用于法拉第箱體和屏蔽室的屏蔽門

We are specialised in designing and manufacturing standard and custom doors for shielded rooms and Faraday cages. High performance single and double knife fingerstrip doors in sliding, swing and even double swing implementations belong to the possibilities. Our engineers will assist to find the best solution possible.

We also produce sets to shield doors with gaskets on top and sides, while the bottom is provided with a conductive copper brush and doorstep. See standard modified doors.

Nearly each type of door can be provided in swings implementation or a sliding implementation.

我們是專業設計和制造標準的和定制的門用于屏蔽室和法拉第箱體。高性能單和雙刀指形簧片門以滑動，旋轉，甚至雙旋轉實施是可能的。我們的工程師將幫助找到最好的解決可能。

我們也生產成套的在頂部和側邊帶有墊圈的屏蔽門，此時底部提供帶有一個導電的銅刷和門階。看標準改進的門。

幾乎每個類型的門都能提供滑動或旋轉的式樣。

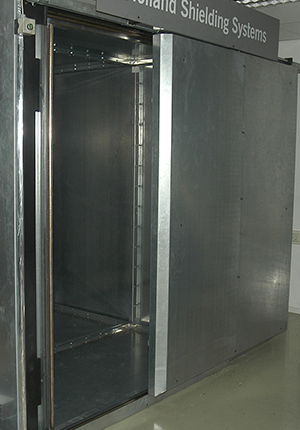

The fully automatic shielded sliding doors are designed for RF and EMP-tight enclosures. It can be integrated in shielded rooms as well as for other types of shielding.
全自動屏蔽滑動門設計用于RF和EMP緊湊殼體。它也能被集成在屏蔽室以及用于其它類型的屏蔽。
The opening procedure of the sliding door is performed in two steps:
屏蔽門的打開程序要執行兩個步驟：

1. Unlatching of the contact spring system and outward movement;拔掉接觸彈簧系統的門栓，往外移動。
2. Sideway movement of the door leaf.側向移動門扇。

The movements of the door and ramp are fully automatic; they are operated electrically and pneumatically. Each opening and closing of the door has a self-cleaning effect on the contact surfaces (Fingerstrips and knife of the door). Sizes range from 1 x 2.1 meters to a 'jumbo' door of 8 x 12 meters.
門和滑行臺的移動是全自動的，由電和氣動操作。每次打開和關閉門有一個自清潔作用在接觸表面上（門的指形簧片和刀）。尺寸范圍從1 x 2.1米到一個8 x 12米的龐大的門。

Options選件

1. Fire proof火證明
2. Automatic closing自動關閉
3. Gas tight氣密
4. (Automatic自動) locking system鎖閉系統
5. Sound proof聲音證明
6. Clean room specifications潔凈室規格

Types類型

1. Single fingerstrip door單指形簧片門
   (Fingerstrip door with soldered fingers or with clamped fingers指形簧片門帶有焊接指形或帶有固支指形)
2. Double fingerstrip door雙指形簧片門
   (Heavy duty fingerstrip door重型指形簧片門)
3. Standard modified door with gaskets標準改進門帶有墊圈
   (Copper plated wooden door, with copper brush and copper doorstep銅板木質門，帶有銅刷和銅門階)

For shielding performance of the different doors which are deliverable click here
對于不同門的屏蔽性能可獲得
Movie of a copper plated wooden sliding door in working action:

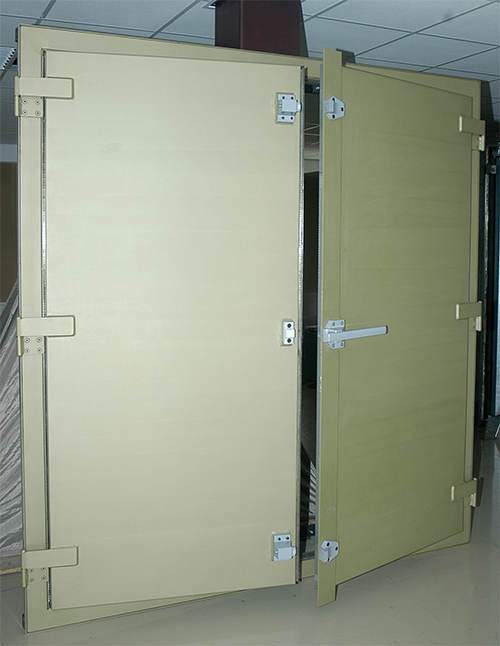

Swing doors雙開式門

The fingerstrip swing doors are well known for their high shielding performance and are used in prefab cages as well as in our Mu-Copper systems. We manufacture single fingerstrip doors for medium shielding performance and double fingerstrip doors for high shielding performance (reduction up to 140 dB). Delivery from stock in various dimensions. In EMC applications, ferrite tiles can be affixed to the standard door leaf.
指形簧片雙開式門是眾所周知的它們的高屏蔽性能和被使用在預制箱體里也用在我們的鉬-銅系統。我們制造單指形簧片門用于中等屏蔽性能和雙指形簧片門用于高屏蔽性能（減少可到140 dB）。可從庫存中交付各種尺寸的門。在EMC應用方面，鐵氧體瓦片能被貼上標準的門扇上。
Options選件

1. Fire proof防火
2. Automatic closing自動關閉
3. Gas tight氣密
4. (Automatic自動) locking system鎖閉系統
5. Sound proof聲音證明
6. Clean rooms specifications潔凈室規格

To achieve the attenuation levels required, we have several types of swing door in our assortment.
為實現衰減級別的需要，我們有幾個類型的雙開式門在我們的分類里。
Types類型

1. Single fingerstrip door單指形簧片門
   (Fingerstrip door with soldered fingers or with clamped fingers指形簧片門帶有焊接指形或帶有固支指形)
2. Standard performance door for hospital use標準性能門用于醫院使用
3. Standard modified door標準改進門
   (Copper plated wooden door, with copper brush and copper doorstep銅板木質門，帶有銅刷和銅門階)

For shielding performance of the different doors which are deliverable click here
不同門的屏蔽性能可獲得
Standard Sizes標準尺寸

Standard shielded leaf doors in steel/wood or steel frames標準屏蔽葉門用鋼/木或鋼支架
Width寬度: single單 800 / 1200 mm , double雙1500 / 2000 mm
Height高度: 2000 / 2100 / 2500 mm

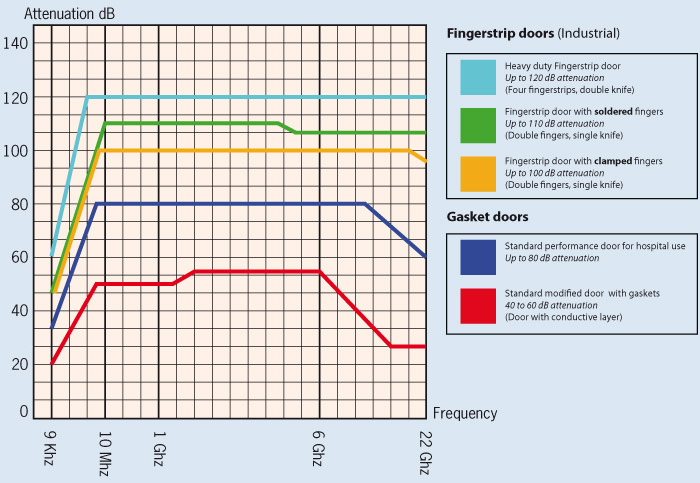

Shielding performance of all shielding doors
