We delivers the following ferrite tiles我們交付下列鐵氧體瓦片:
Material characteristics材料特性:
Propery / Material 材料 |
Symbol符號 |
Unit單位 |
HSS高速鋼_ferrite15鐵氧體 |
|
Initial permeability起始導磁率 |
ui |
|
2200 ±20% |
|
Relative loss factor比損耗因數 |
tan δ/μ |
*10-6 |
32 |
|
Saturation flux density飽和磁通密度 |
Bs |
Gauss mT |
2400 |
|
Residual flux density剩余磁通密度 |
Br |
Gauss mT |
1000 |
|
Coercive force抗磁力 |
Hc |
Oe |
0,125 |
|
Curie temperature局里溫度 |
Tc |
℃ |
>90 |
|
Density密度 |
d |
g/cm3 |
>5 |
|
Resistivity電阻率 |
ρ |
Ω-cm |
>107 |
Performance characteristics性能特性

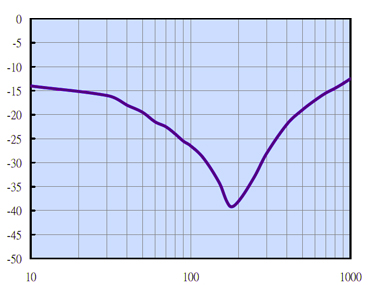

(Normal incedence reflection loss反射損耗)
|
Reflection |
|
|
|
100 |
|
|
|

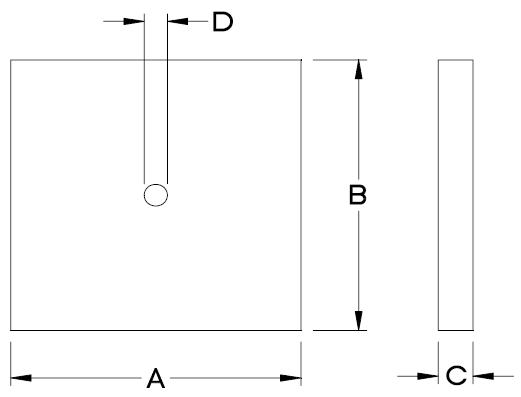

Dimensions in mm尺寸
Part number 零件號 |
Dimension尺寸(mm) | |||
|
A |
B |
C |
D | |
|
HSS_ferrite15 - 5.5 |
100±0.15 |
100±0.15 |
5.5±0.1 |
10±0.2 |
|
HSS_ferrite15 - 5.7 |
100±0.15 |
100±0.15 |
5.7±0.1 |
10±0.2 |
|
HSS_ferrite15 - 6.3 |
100±0.15 |
100±0.15 |
6.3±0.1 |
10±0.2 |
|
HSS_ferrite15 - 6.5 |
100±0.15 |
100±0.15 |
6.5±0.1 |
10±0.2 |
|
HSS_ferrite15 - 6.7 |
100±0.15 |
100±0.15 |
6.7±0.1 |
10±0.2 |
